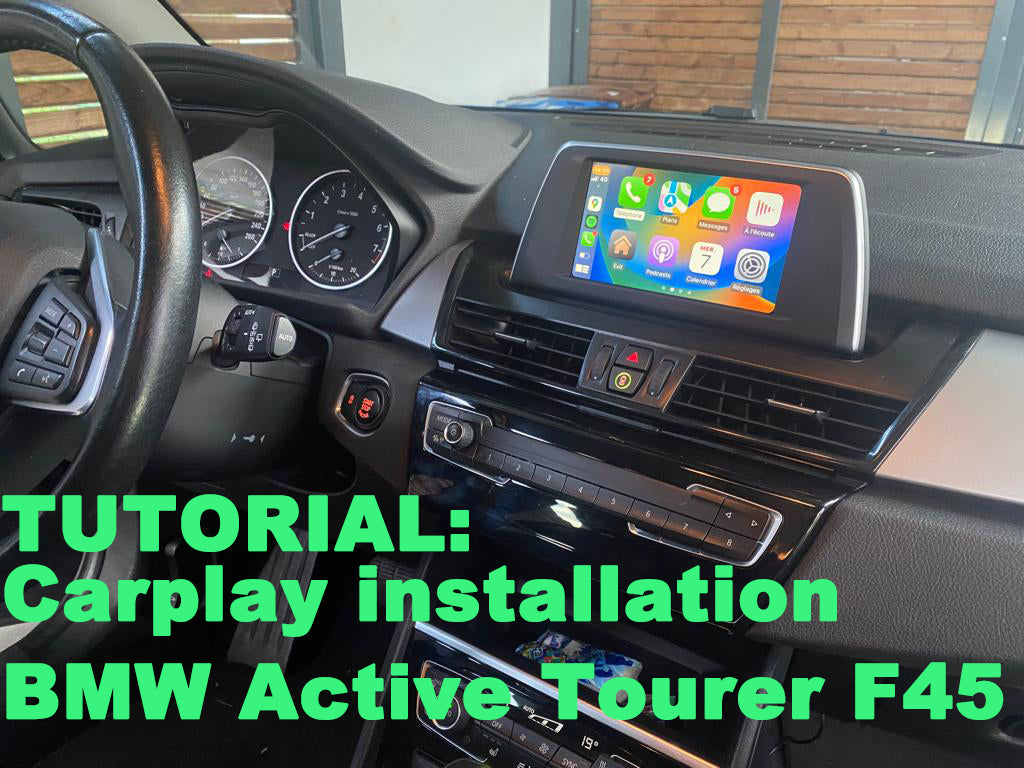

Carplay installation tutorial BMW 2 Series Active Tourer F45

Carplay installation tutorial BMW 2 Series Active Tourer F45

intérieur bmw f45

We will see here in pictures how to install Apple Carplay on a BMW Active Tourer F45.

Required equipment: a T20 torx screwdriver.

Installation time: 30-40 minutes

Inventory: Carplay module and wiring.
So we count the module, a wifi antenna, 2 LVDS (video) cables, the power cable, the auxiliary cable, and a USB cable (no need to connect it if you use the device wirelessly).


démontage poste bmw f45

We start by removing the cover under the post. You have to put a spatula or a thin object and to make lever on it.

démontage poste bmw f45

Remove it.

démontage poste bmw f45

There are now 2 Torx T20 screws to remove.

démontage poste bmw f45

Remove it.

démontage module climatisation bmw f45

démontage cache bmw f45

Now we're in the process of removing the entire plastic cross member.

démontage cache traverse bmw f45

It is very solid and well fixed, you can leverage it without any worries.

démontage écran bmw f45

Last part before the connections, there are 4 screws to remove: 2 that fix the screen, and 2 that fix the station. Remove them.


branchement écran bmw f45

Remove the LVDS (video) plug from its connector.

débranchement écran bmw f45

This purple plug goes into the LVDS IN part module.

branchement carplay bmw f45

Then connect the turquoise LVDS OUT connector of the KIT in place of the original one.

quadlock bmw f45

And finally, simply unplug the power plug (called QUADLOCK) and plug in the KIT's power plug instead. It's a simple BY-PASS.


Press the MENU button for 3 seconds on your BMW F45 iDRIVE wheel.

The menu will appear, select what you want to use: Apple Carplay, Android Auto or Mirror Screen.

carplay android auto active tourer

We chose Apple Carplay which will launch by default (without the previous menu), to choose Android Auto for example, go to the BMW application.

carplay bmw f45

Our module: Apple Carplay for BMW HERE

caméra de recul bmw f45

If you don't have an original camera, you can also install one. The result is just perfect, it is a handle camera, like the original one, find it HERE.
