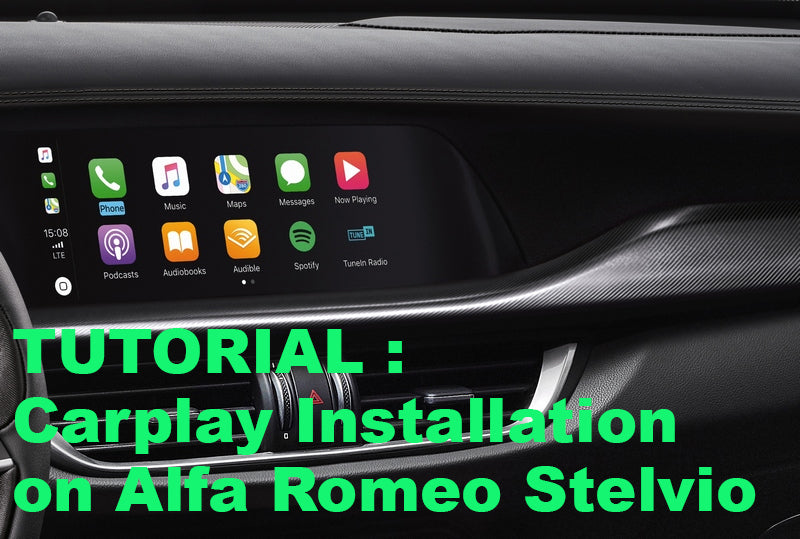

Carplay installation tutorial on Alfa Romeo Stelvio

Carplay installation tutorial on Alfa Romeo Stelvio

intérieur alfa romeo stelvio

We will see here in pictures how to install Apple Carplay on an Alfa Romeo Stelvio.

Hardware needed: a T20 torx screwdriver + a pipe wrench.

Installation time: 30-40 minutes

Inventory: Carplay module and wiring.
This includes the module, a wifi antenna, 2 LVDS (video) cables, the power cable, the sound cable, and a USB cable (do not plug it in if using the wireless device).

STEP 1: REMOVAL OF THE PLASTIC COVER UNDER THE STEERING WHEEL

stelvio démonter radio

stelvio cache plastique

 Open the bag opener.

alfa romeo stelvio gps

démontage poste alfa romeo

A screw to remove in the pocket.

démontage sous volant alfa romeo stelvio

Then 3 screws to be able to take out the car radio.

STEP 2: DISMANTLING THE ALFA ROMEO STELVIO CAR RADIO

démonter poste autoradio alfa romeo stelvio

Remove the 2 screws holding the station.

démontage autoradio alfa romeo stelvio

Remove the original purple-colored video jack from the radio's large power jack (Quadlock).

STEP 3: CONNECTIONS

poste autoradio alfa romeo stelvio

brancher carplay alfa romeo stelvio

Connect the quadlock plug to the by-pass.

brancher carplay alfa romeo stelvio

Connect the other side to the station.

branchement carplay alfa romeo stelvio

Do the same for video shooting.

STEP 4: ENJOY

carplay alfa romeo stelvio

You can test by pressing the MENU button on the joystick for 2-3 seconds, it switches to the Carplay interface.

Module link: HERE
