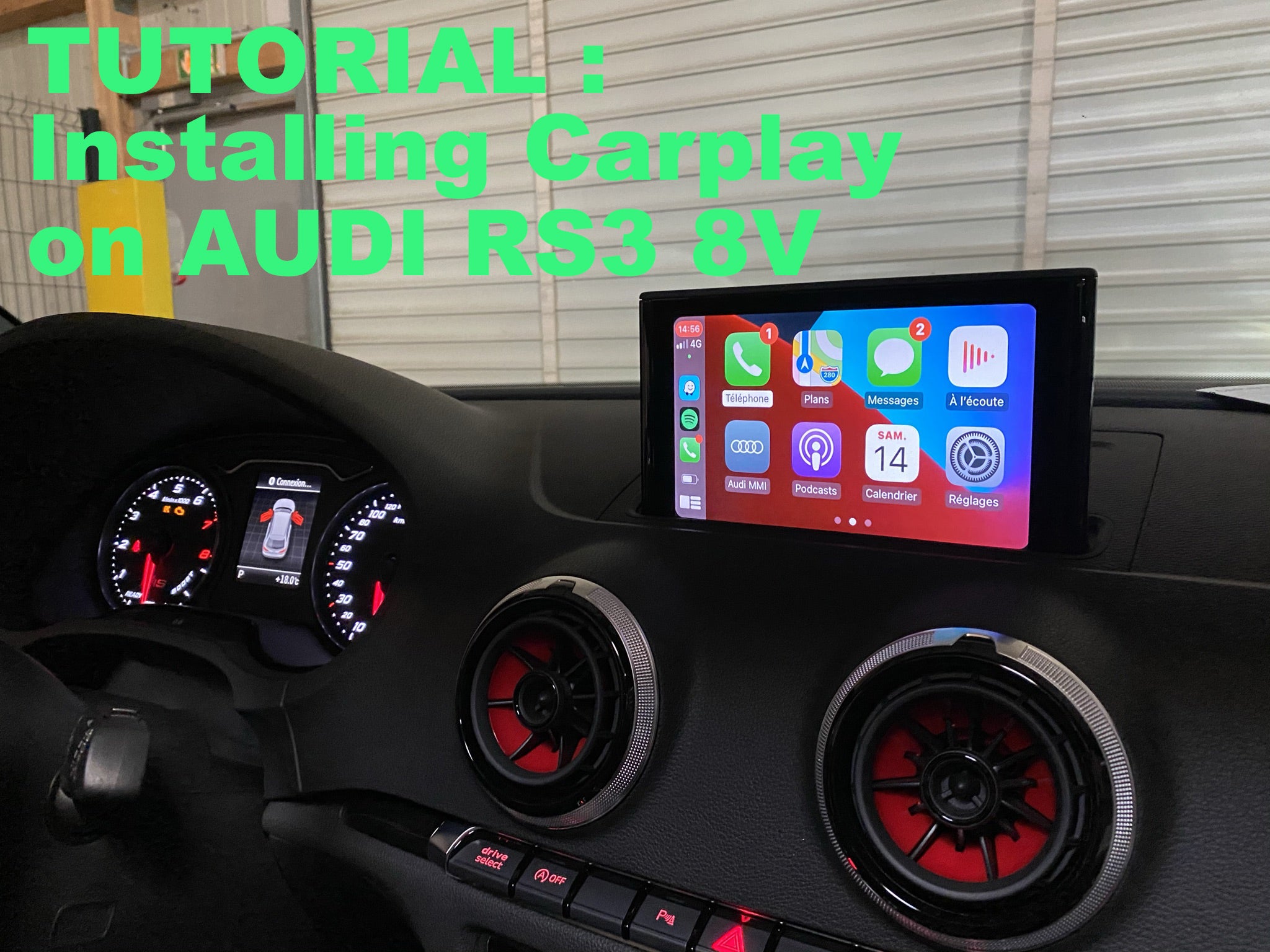

We will see here in pictures how to install Apple Carplay on an Audi RS3, similar to an S3 or an A3, the important thing is that it is an 8V.

Hardware required: a ratchet with 8 bits and 2 Audi car radio extraction keys.

Installation time: 30-40 minutes

Inventory: Carplay module and wiring.
This includes the module, a wifi antenna, 2 LVDS (video) cables, the power cable, the sound cable, and a USB cable (do not plug it in if using the wireless device).


clef audi extraction autoradio boite à gant

Insert the 2 extraction keys.

sortir poste boite a gant audi

Pull the station out.

démontage boite a gant rs3

Remove the cover with a spatula.

démonter boite a gant rs3

dévisser boite a gant rs3

One screw to be removed.

vis boite à gant audi a3

3 screws up.

vis boite à gant audi a3 8V

2 screws at the bottom.

vis boite à gant audi s3

These are size 8 torx screws.

sortir boite à gant audi a3 8V

Take out the glove box.

poste harman rs3


démonter unité gps audi a3

Unplug the large power connector (called Quadlock) and the gray-colored video jack.

branchement carplay audi a3

Connect the cables provided in the kit like this.

brancher carplay audi a3

Now connect the by-pass to the original station.

brancher câble vidéo audi a3

The gray video (LVDS) jack of the car radio to be inserted into the LVDS_OUT cable.

lvds audi a3

The pink colored plug of the kit (LVDS_IN) is to be plugged here.


You can then choose between Apple Carplay, Android Auto, Mirror Link or your original mmi Audi screen. We have selected Apple Carplay by long pressing (2-3 seconds) on the BACK key.

carplay rs3 ios14

waze rs3

Waze displayed on the original screen.

Module link: HERE
