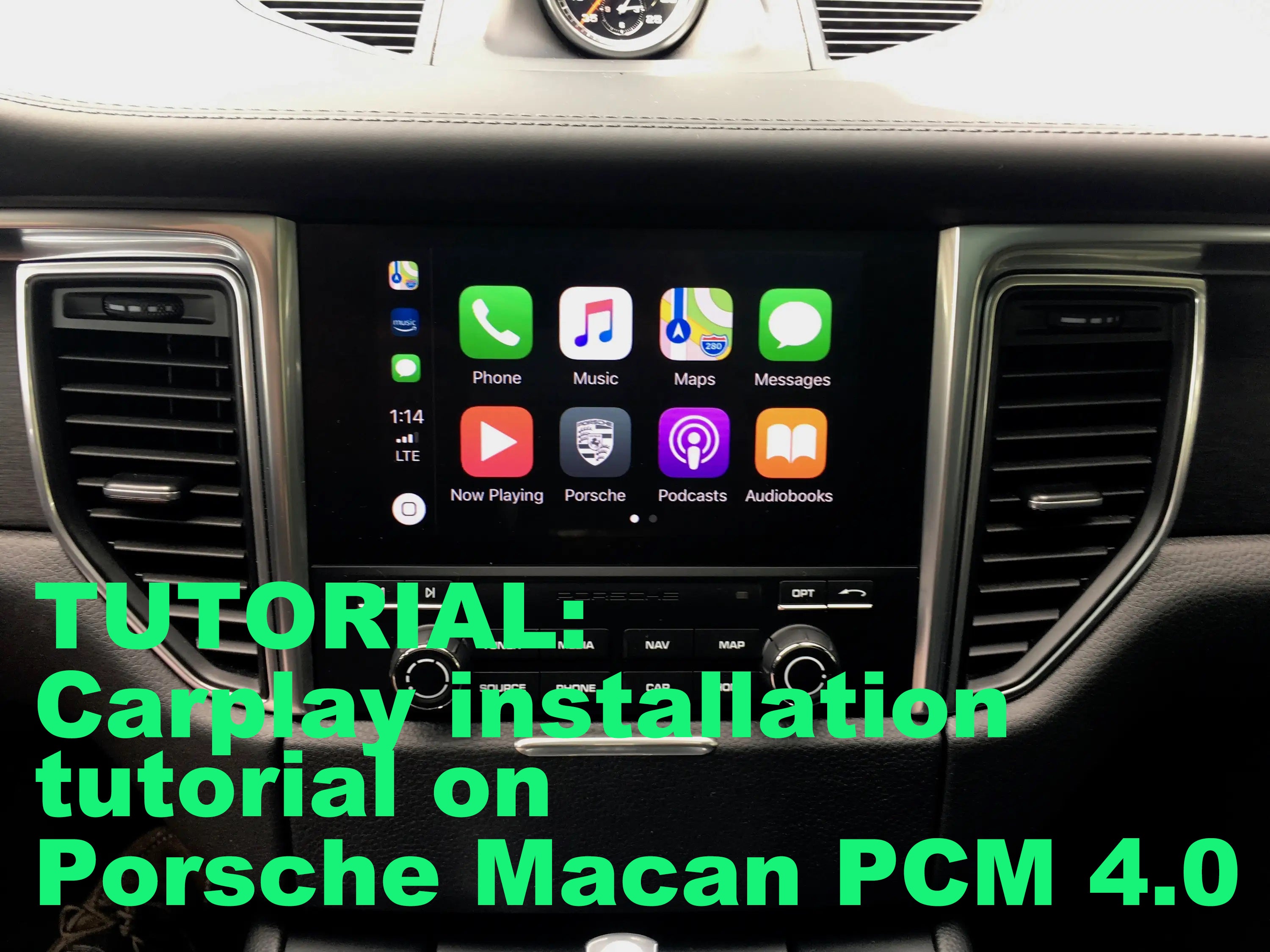

Carplay installation tutorial on Porsche Macan PCM 4.0

Carplay installation tutorial on Porsche Macan PCM 4.0

interieur porsche macan 2018

We will see here in pictures how to install Apple Carplay on a Porsche Macan with PCM 4.0 system.

Required hardware: a T20 torx screwdriver.

Installation time: 40 minutes

Inventory: Carplay module and wiring.
This includes the module, a wifi antenna, 2 LVDS (video) cables, the power cable, the sound cable, and a USB cable (do not plug it in if using the wireless device).

STEP 1: REMOVING THE VENTILATION PANEL

démontage ventilation porsche macan

Let's start by removing the ventilation on the left.

démontage ventilation porsche macan

démonter ventilation porsche macan

Then the one on the right.

démonter ventilation porsche macan

Pull the entire cover with both vents towards you.

STEP 2: REMOVING THE PCM 4.0 CAR RADIO

démontage pcm porsche macan

Open the small drawer.

démontage pcm porsche macan

Unscrew the 4 screws.

démontage pcm porsche macan

démontage vide poche porsche macan

Once the screws are unscrewed, the drawer is easily pulled out.

accès au poste porsche macan pcm

Here is the result once unscrewed and the drawer removed.

sortir pcm porsche macan

Insert the extraction keys.

sortir pcm porsche macan

Pull the PCM station towards you.

STEP 3: CONNECTIONS

branchements poste pcm porsche macan

Remove the power plug from the station (quadlock).

branchement poste pcm porsche macan

Make a bridge (by-pass) by connecting the kit's cable between the original quadlock and the station.

prise vidéo pcm porsche macan

Remove the green video jack.

prise vidéo pcm porsche macan

Plug it into the female video jack of the kit.

prise vidéo pcm porsche macan

Connect the male video plug of the kit to the location of the original green plug.

prise aux porsche macan

For sound, simply plug the small dongle into the AUX-JACK jack (optional in some cases).

prise jack porsche macan

Reassemble the radio by placing the module behind the screen and enjoy the carplay by pressing the NAV button.

STEP 4: ENJOY

carplay porsche

You can test by pressing the NAV button on the PCM for 2-3 seconds to switch to the Carplay interface.

Module link: HERE

apple carplay porsche
