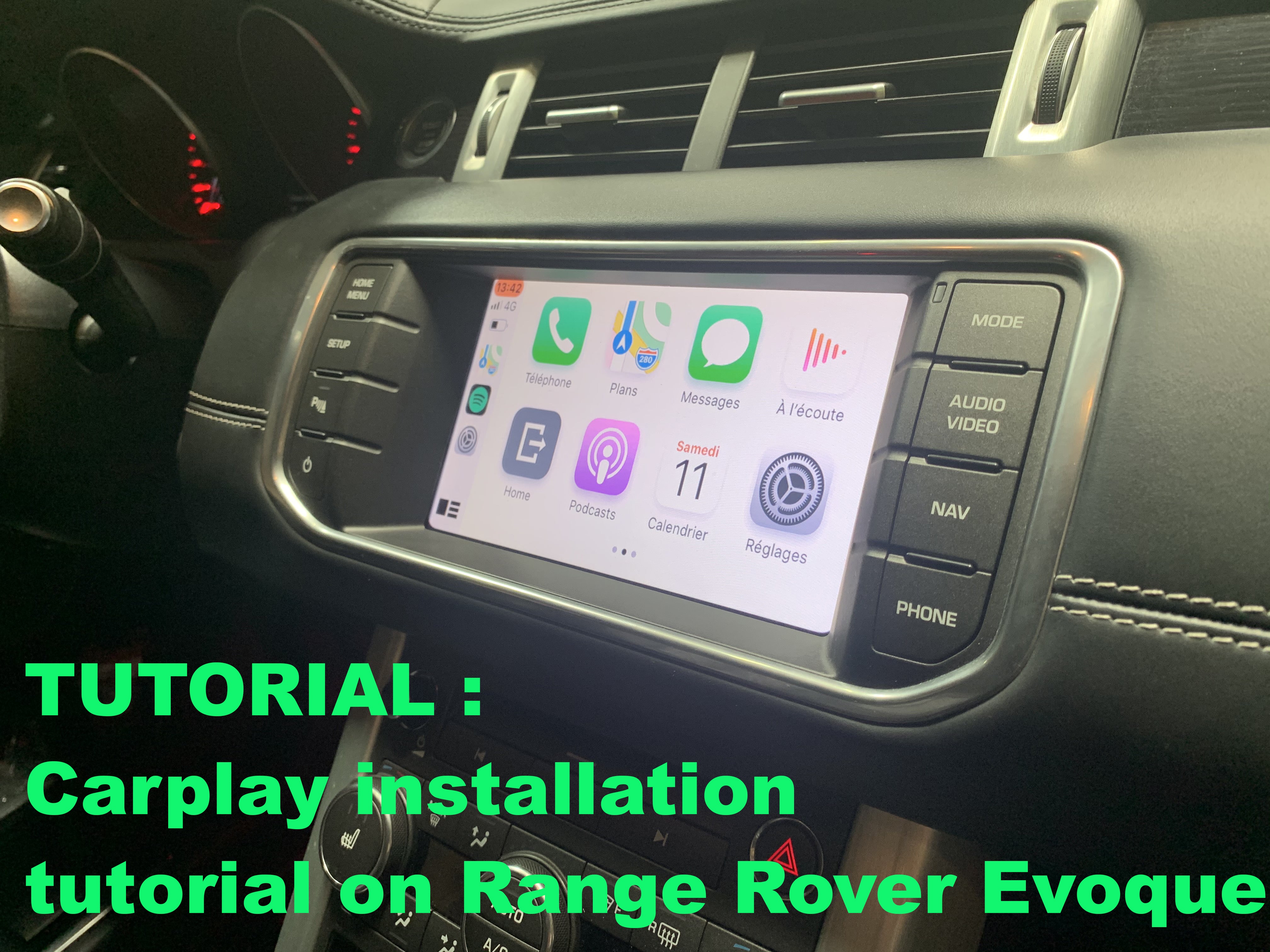

Carplay installation tutorial on Range Rover Evoque

Carplay installation tutorial on Range Rover Evoque

Interieur gps range rover evoque

We will see here in pictures how we install Apple Carplay on a 2012 Range Rover Evoque.

Required hardware: a T20 torx screwdriver.

Installation time: 40-50 minutes

Inventory: Carplay module and wiring.
This includes the module, a wifi antenna, 2 LVDS (video) cables, the power cable, the sound cable, and a USB cable (no need to plug it in if using the wireless device).

STEP 1: REMOVAL OF THE SCREEN

démontage écran range rover evoque

First thing, unclip the speed sub-counter cover.

démontage écran range rover evoque

Operate the hatch to move the steering wheel.

démontage écran range rover evoque

Pull the steering wheel towards you for better access.

démontage écran range rover evoque

A screw on the left side.

démontage écran range rover evoque

A screw on the right side.

démontage écran range rover evoque

Place the spatula like this to unclip the plastic cover.

démontage écran range rover evoque

A screw.

démontage écran range rover evoque

Once the assembly is unscrewed, you can remove it.

démontage écran range rover evoque

The screen is held by 4 screws.

démontage écran range rover evoque

Remove the screen.

STEP 2: CONNECTIONS

branchement carplay evoque

Simply remove the blue video plug and plug it back in by-pass on the supplied connector.

Same for the power jack on the left side of the screen.

STEP 3: ENJOY

apple carplay range rover evoque

You can test by pressing the NAV key on the display to switch to the Carplay interface.

Module link: HERE

Module link: HERE
