Carplay installation tutorial on Range Rover Vogue

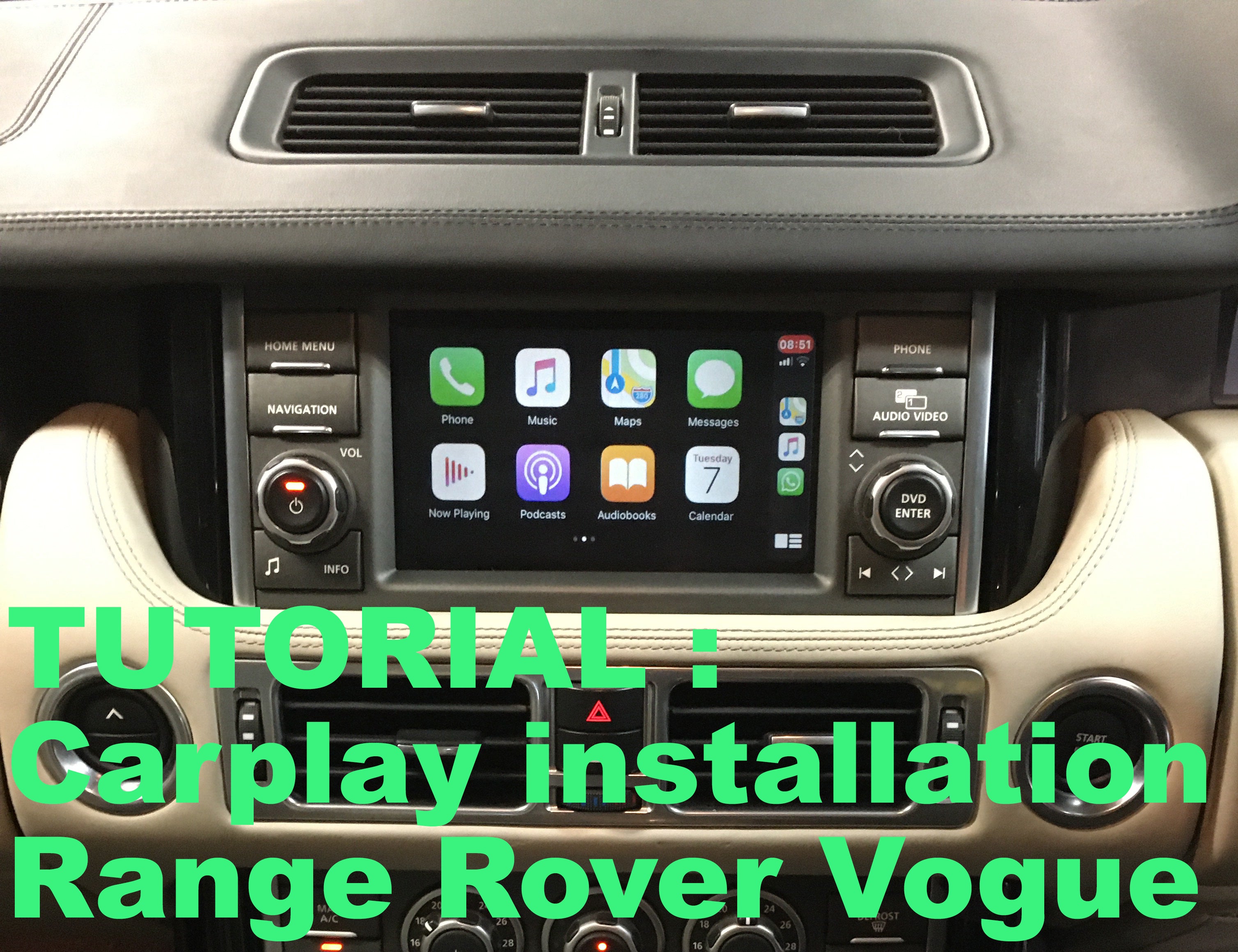

Here we will see in pictures how to install Apple Carplay on a Range Rover Vogue L322.

Required equipment: a T20 torx screwdriver.

Installation time: about 1h30

Inventory: Carplay module and wiring.
So we count the module, a wifi antenna, 2 video cards with the flexible mats, the power cable, the auxiliary cable, and a USB cable (no need to connect it if you use the device wirelessly) and the rest of the wiring.

STEP 1: DISASSEMBLE THE CAR RADIO/MONITOR

Remove the glove box and screen side to be more comfortable for the assembly.

STEP 2: CONNECTION

Install the decks (video cards) behind the screen.

Last step : fix the board behind the screen

Then connect the video card to the central unit.

Do not forget to connect the central unit with the Carplay module provided.

STEP 3: TEST

Press the BACK or MENU button for 3 seconds on your screen.

The menu will appear, select what you want to use: Apple Carplay, Android Auto or Mirror Link.

Here, we have chosen Apple Carplay on this Range Rover Vogue L322.

Our module: Apple Carplay for Range Rover Vogue : HERE
