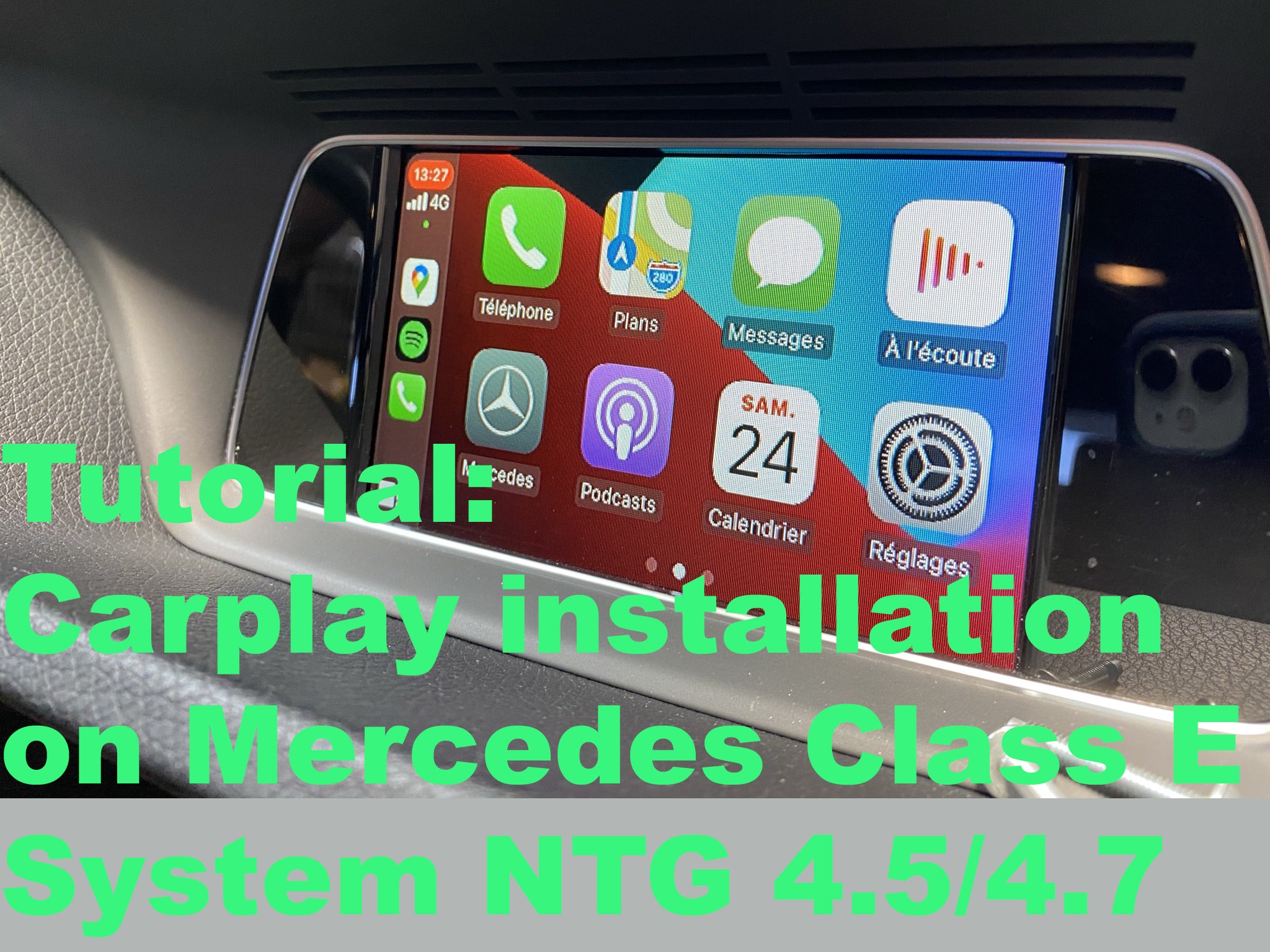

Carplay installation tutorial for Mercedes E Class

Carplay installation tutorial for Mercedes E Class

interieur mercedes class e

We will see here in pictures how to install Apple Carplay on a Mercedes E-Class.

Required equipment: a T20 torx screwdriver and a thin flat screwdriver.

Installation time: 30-40 minutes

Inventory: Carplay module and wiring.
So we count the module, a wifi antenna, 2 LVDS (video) cables, the power cable, the auxiliary cable, and a USB cable (no need to plug it in if you use the device wirelessly).


démontage tableau de bord mercedes classe e

The removal of the car radio is done by first taking out the ventilation grilles.

démonter aération mercedes classe e

Push a flat screwdriver thin enough to spread the tabs. There is one on the right and one on the left.

démonter mercedes classe e

Now you have to take the crossbar out of the dashboard.

démonter classe e

Also pull the second tab.

démonter boite à gant classe e

dévisser autoradio ntg 4.5

Once the crossbar removed, now we can have access to the car radio, it is maintained by 2 torx screws

vis mercedes autoradio

The torx screws are hard to remove towards the end because there is threadlocker. This is Mercedes ;)

sortir autoradio mercedes classe e

Once the screws are removed, you can now gently pull the station towards you.

autoradio mercedes classe e

Don't forget to unplug the connector on the side of the station.


poste autoradio mercedes classe e

Unplug the large power jack (Quadlock) and the gray video jack (LVDS).

débrancher poste autoradio ntg 4.5

Plug the bypass into the original quadlock slot.

quadlock carplay ntg 4.5

Plug the original grey LVDS plug into the grey female socket provided (LVDS OUT) and plug the pink socket (LVDS IN) into it instead.

Same principle for the power connector: plug it into the supplied bypass cable.


Press the RETURN button on your pad for 3 seconds.

The menu will appear, select what you want to use: Apple Carplay, Android Auto or Mirror Screen.

apple carplay mercedes classe e

We have chosen Apple Carplay which will launch by default (without the previous menu), to choose Android Auto for example, go to the MERCEDES application.

Order our Apple Carplay module for MERCEDES E Class : HERE

Here is the installation video :
