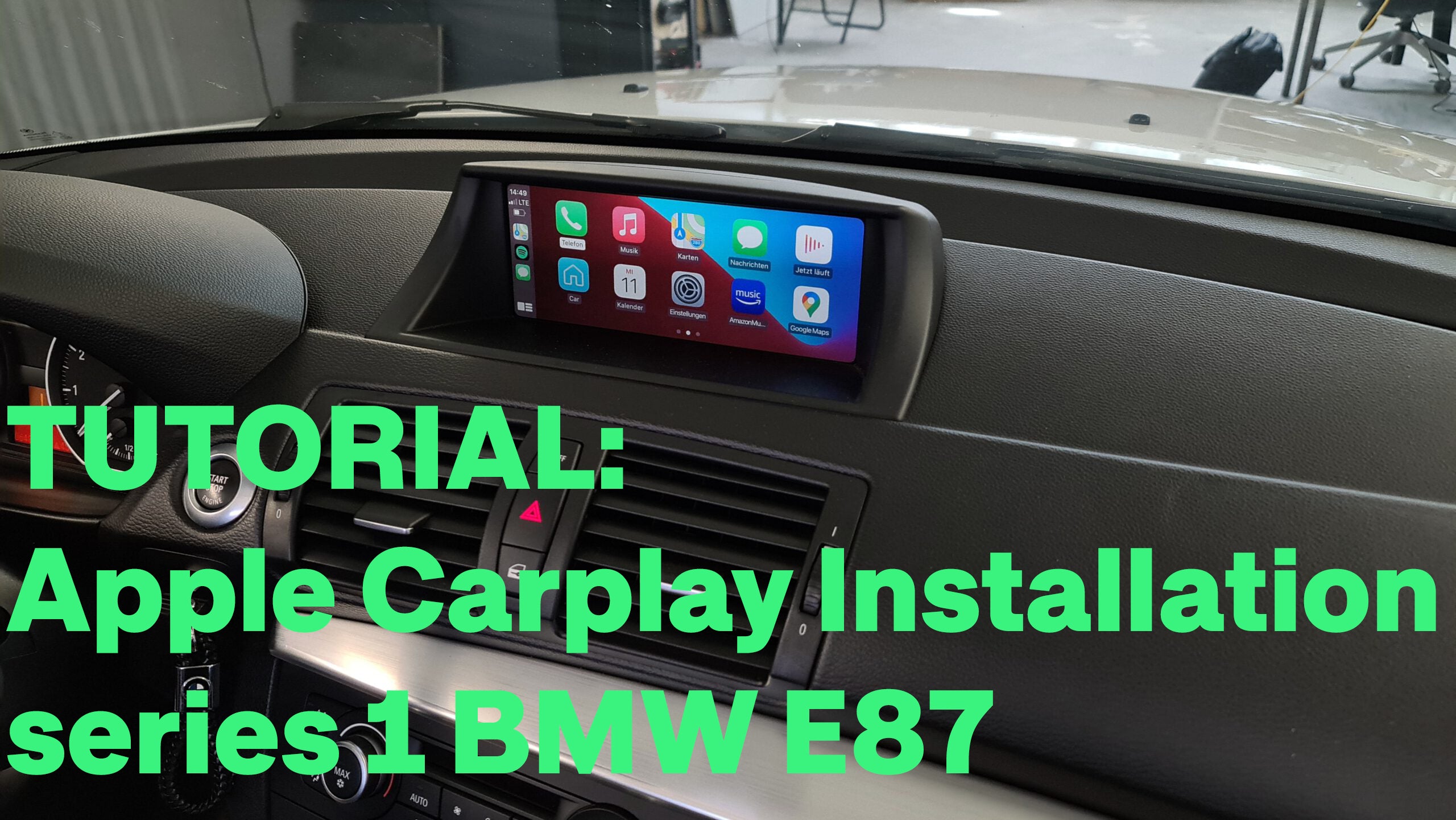

Carplay installation tutorial on BMW 1 Series E87

Carplay installation tutorial on BMW 1 Series E87

intérieur bmw série 1 coupé e82

In this tutorial we will see how to install Apple Carplay on a BMW E87 with a CIC version.

Required equipment: a cross-headed screwdriver

Installation time: 30-40 minutes

Inventory: Carplay module and wiring.
So we count the module, a wifi antenna, 2 LVDS (video) cables, the power cable, the sound cable, and a USB cable (you don't have to connect it if you use the device wireless).

STEP 1: DISASSEMBLE THE CAR RADIO

démontage cache autoradio bmw e81

We will start by unclipping the plastic cover.

démontage panneau climatisation bmw série 1

In a second step, take out the air-conditioning control, you have to take out the black and white connectors.

démontage plastique bmw série 1

Then remove the plastic cover.

démontage poste autoradio cic bmw

There are 2 screws to unscrew (those which maintain the CIC car radio)

STEP 2 : REMOVAL OF THE IDRIVE WHEEL

démonter cache levier de vitesse bmw

To have more facility for the continuation, it is necessary to unclip (very simple) the plastic support of the gearshift (if it is a manual box then pull on the leather part).

démonter idrive bmw

Unclip the Idrive joystick as well.

démonter molette bmw

Once in hand, you can see the single connector on the joystick. Unplug it.

démontage molette idrive bmw

And plug it back into the provided socket. There are deception devices, you can't go wrong.

branchement joystick bmw

Plug the kit connector back into the joystick socket. The purpose is simply to make a bypass.

STEP 3: CONNECTIONS

cable vidéo bmw série 1

At the car radio station, identify the video socket of the station (it is pink).

cable vidéo bmw série 1

Unplug this socket and then plug it into the female video socket of the kit.

cable vidéo bmw série 1

The pink plug (male) of the kit is to be connected in place of the disconnected plug. (same, we make a by-pass for the video).

branchement carplay

Connect LCD-IN and LCD-OUT as follows.

passer câble bmw

For the cable, no need to disassemble everything, just run the cable along the crossbar.

STEP 4 : ENJOY

chargement Carplay

Now you can test the Carplay by pressing the MENU button on the joystick for 2-3 seconds, it will switch to the Carplay interface. (first start)

interface carplay

The setting interface.

apple Carplay BMW e82 e87 e81 e88

We have chosen Apple Carplay for Iphones, but you can also run Android Auto for those who have an Android smartphone.

Module link: HERE
