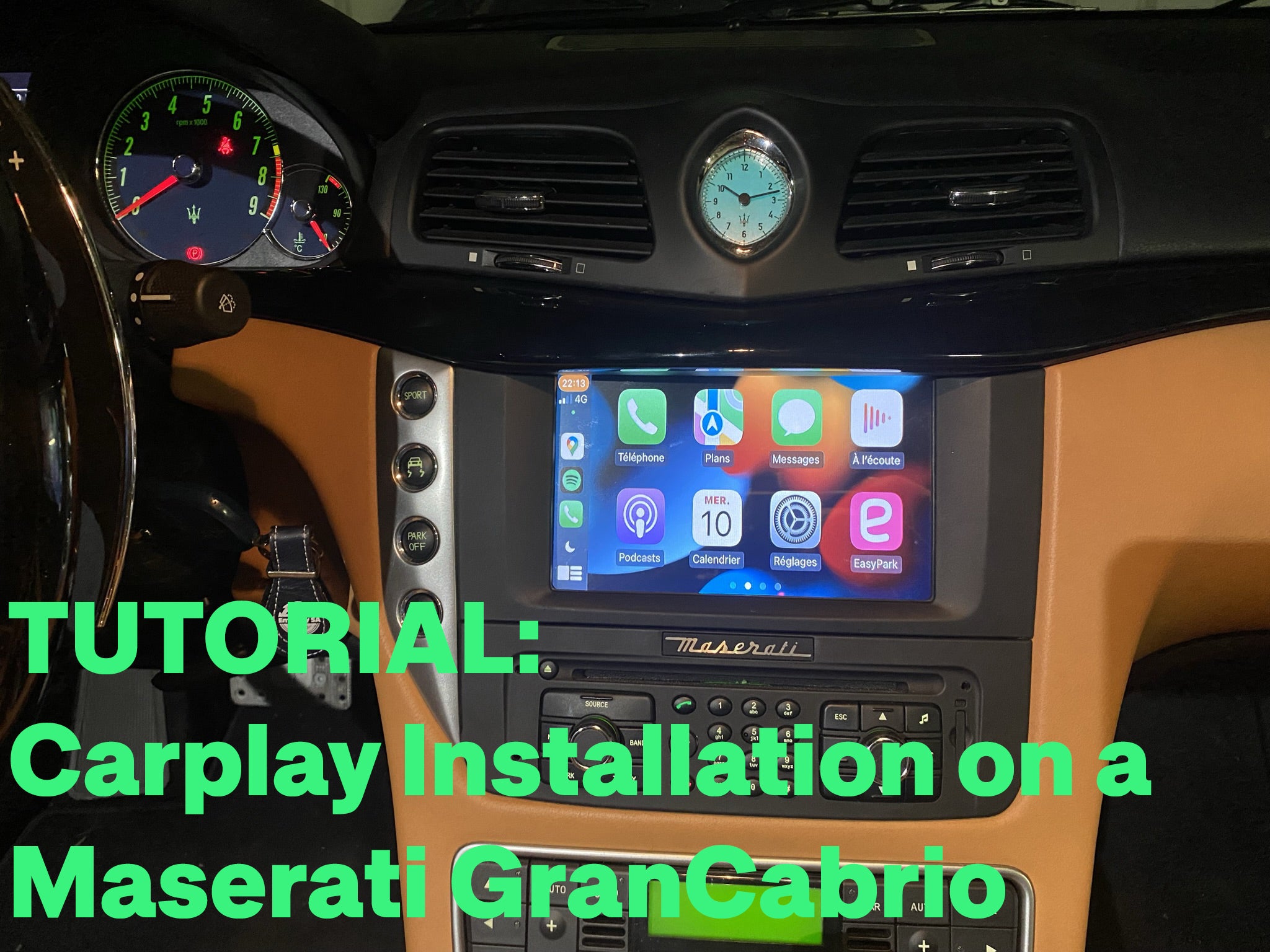

Here we will see in pictures how to install Apple Carplay on a Maserati GranCabrio.

Required hardware: a T20 torx and Phillips screwdriver.

Installation time: 2-3 hours.

Inventory: 1 Carplay module + 1 video management module and the wiring.
So we count 2 modules, a wifi antenna, 2 LVDS (video) cables, the power cable, the auxiliary cable, the HDMI cable, the touch screen and a USB cable (no need to connect it if you use the device wirelessly).

STEP 1: DISASSEMBLE THE CAR RADIO

démontage autoradio maserati granturismo

First, insert the pins to remove the car radio.

démontage autoradio maserati granturismo

démontage autoradio maserati granturismo

Remove the car radio.

démontage autoradio maserati granturismo

Disconnect the connectors from the station. Put it on the back.

STEP 2: REMOVAL OF THE SCREEN

Démonter écran maserati gt

Remove the bar from the dashboard.

Démonter écran maserati gt

Remove all screws from the top of the screen.

cache cuir grancabrio

And those on the side of the crossbar.

Démonter écran maserati gt

Beware of the 2 hidden screws under the screen.

Démonter écran maserati gt

Remove the screws from the glove box.

Démonter écran maserati gt

Now remove the post that is covered with leather, go slowly.

Démonter écran maserati gt

Unclip it gently...

Démonter écran maserati gt

Remove the covers under the cup holders.

Démonter écran maserati gt

2 screws are there, they must be removed.

Démonter écran maserati gt

A screw on the right at the level of the cigarette lighter.

Démonter écran maserati gt

And a screw on the left at the level of the parking brake.

Démonter écran maserati gt

Finally, pull the panel up.

Démonter écran maserati gt

2 screws appear.

Démonter écran maserati gt

Finally remove the 2 plugs behind the screen. A video plug (LVDS) and a power plug of the screen.

Démonter écran maserati gt

You can now gently remove the set.

Démonter écran maserati gt

STEP 3: CONNECTION

installer carplay maserati gt

Place the set on a flat surface so you can work at your ease.

installer carplay maserati gt

Here is the touch screen to put in front of the screen.

installer carplay maserati gt

Connect the plugs as shown.

installer carplay maserati gt

Do not forget to make a splice in the power supply socket as well as the 2 cables CAN + and CAN - (it is shown in the instructions).

installer carplay maserati gt

The Carplay box must be connected like this.

installer carplay maserati gt

And at the back the HDMI cable.

installer carplay maserati gt

installer apple carplay maserati gt

Reassemble the assembly and test it.

STEP 4: TEST

Press the voice button on your steering wheel or long press directly on the screen which is now touch sensitive.

The menu will appear, select what you want to use: Apple Carplay, Android Auto or Mirror Screen.

carplay granturismo maserati

We chose Apple Carplay which will launch by default (without the previous menu), to choose Android Auto for example or even Mirror Link.
