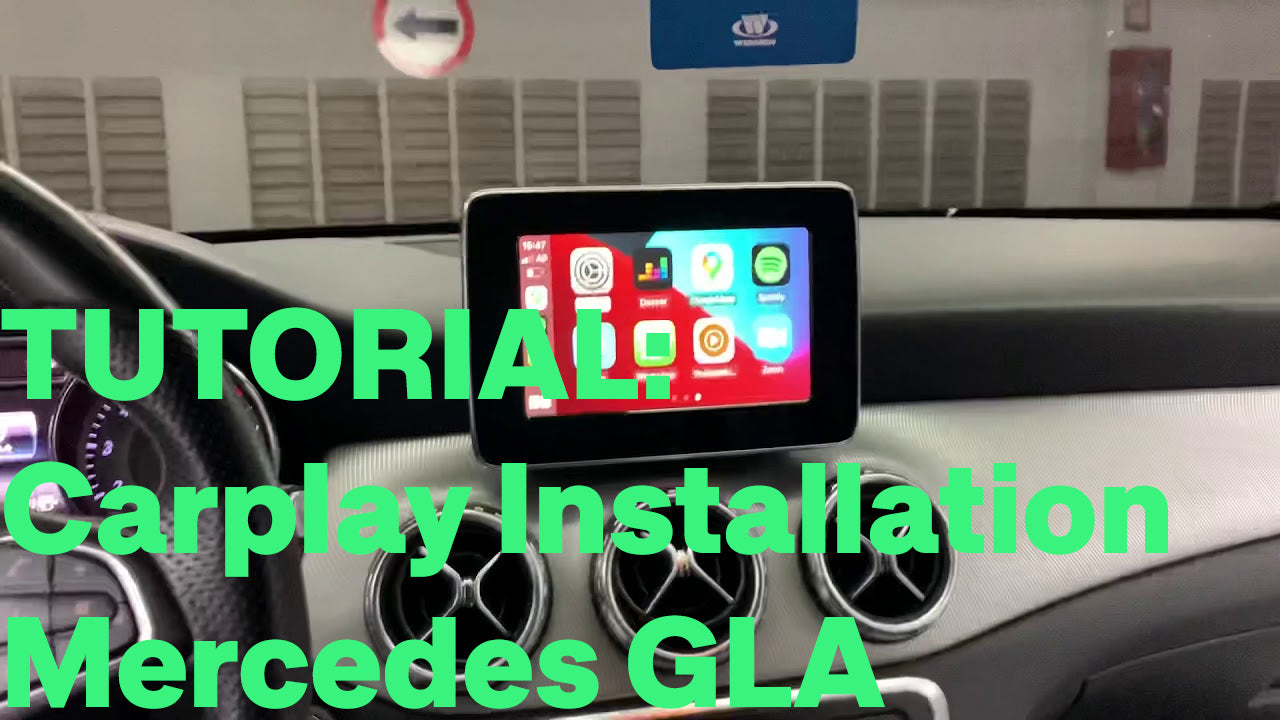

Carplay installation tutorial on Mercedes GLA

Carplay installation tutorial on Mercedes GLA

intérieur classe A

In the following tutorial, we will observe in images the procedure for installing Apple Carplay on a Mercedes GLA Class of 2014 and therefore with a version NTG 4.5 4.7.

Equipment needed: a T20 torx screwdriver and a curved tool to remove the ventilation grills.

Installation time: 30-40 minutes

Inventory: Carplay module and wiring.
So we count the module, a wifi antenna, 2 LVDS (video) cables, the power cable, the auxiliary cable, and a USB cable (no need to connect it if you use the device wirelessly).

STEP 1: DISASSEMBLE THE CAR RADIO

mercedes classe a ntg 4.7

To disassemble the car radio, you must first remove the ventilation grilles.

démontage grille ventilation mercedes classe a

Then push a curved tool to remove on the ventilation grids.

démontage grille ventilation mercedes classe a

démontage grille ventilation mercedes classe a

Pull towards you, it's very well fixed so you have to pull straight.

démontage grille ventilation mercedes classe a

The one on the left must also be removed.

démontage grille ventilation mercedes classe a

The middle ventilation grille must not be removed.

démontage grille ventilation mercedes classe a

We see that the car radio is held by a torx screw behind each ventilation grid.

démontage autoradio mercedes classe a

The post finally comes out by itself.

démontage autoradio mercedes classe a

Carefully remove it by unplugging the connector(s) if present.

STEP 2: CONNECTION

branchement quadlock

Plug the Quadlock (power outlet of the station) directly into the By-Pass

branchement carplay mercedes

And plug the bypass into the original quadlock slot.

branchement carplay mercedes

Next, pull out the original LVDS (video jack) from the station (gray).

branchement carplay mercedes

Then plug it into the supplied socket.

branchement carplay mercedes

And finally connect the pink video plug of the kit instead of the original LVDS plug.

prise vidéo carplay mercedes

Like this.

STEP 3: TEST

switch carplay Mercedes

Finally, press the RETURN button on your joystick for 3 seconds.

menu carplay mercedes classe A

The menu will appear, select what you want to use: Apple Carplay, Android Auto or Mirror Screen.

apple carplay Mercedes classe A

We have chosen here Apple Carplay which will launch by default (without the previous menu), to choose Android Auto for example, go to the MERCEDES application and you simply choose Android Auto.
