Carplay installation tutorial on BMW F13 with NBT system

Carplay installation tutorial on BMW F13 with NBT system

intérieur série 6 coupe

Here we will see in pictures how to install Apple Carplay on a 2015 BMW 6 series coupe F13 with NBT system.

Required equipment: a T20 torx screwdriver.

Installation time: 30-40 minutes

Inventory: Carplay module and wiring.
So we count the module, a wifi antenna, 2 LVDS (video) cables, the power cable, the auxiliary cable, and a USB cable (no need to plug it in if we use the device wirelessly).

STEP 1: DISASSEMBLE THE CAR RADIO

démonter tableau de bord f10

Remove the cover attached to the vent with a flat object, it's very solid, no risk of breaking! It is a single piece.

vis bmw derrière la ventilation

Now, it is necessary to unscrew the air conditioning control which "hides" the car radio: 2 Torx T20 screws.

retirer console f10

You can now remove the air conditioning panel with its connectors.

poste bmw vis

The station is maintained by 4 Torx T20 screws.

STEP 2: DISASSEMBLE THE SCREEN

démonter écran bmw série 5

The screen is maintained by 2 Torx screws (red circles).

To remove the screen, it's very simple, pull it up.

arriere écran bmw f10

Pull the LVDS (video) cable out of the purple connector.

STEP 3: CONNECTION

module carplay bmw f20

Connect the purple plug of the display here (LVDS 2 connector).

sortir poste bmw f10

Remove the power plug from the car radio, the pink plug (video) is also to be removed (to be inserted in LVDS 2).

fibre optique bmw f10

Remove the fiber from the original power outlet if you have one.

fibre optique bmw f20

Then put it back into the power socket (the bypass) of Carplay.

branchement carplay bmw f20

and finally connect the power bypass of the car radio.

STEP 4: TEST

Press and hold the BACK or MENU button for 3 seconds on your iDRIVE wheel.

The menu will appear, select what you want to use: Apple Carplay, Android Auto or Mirror Link.

carplay bmw f10 nbt

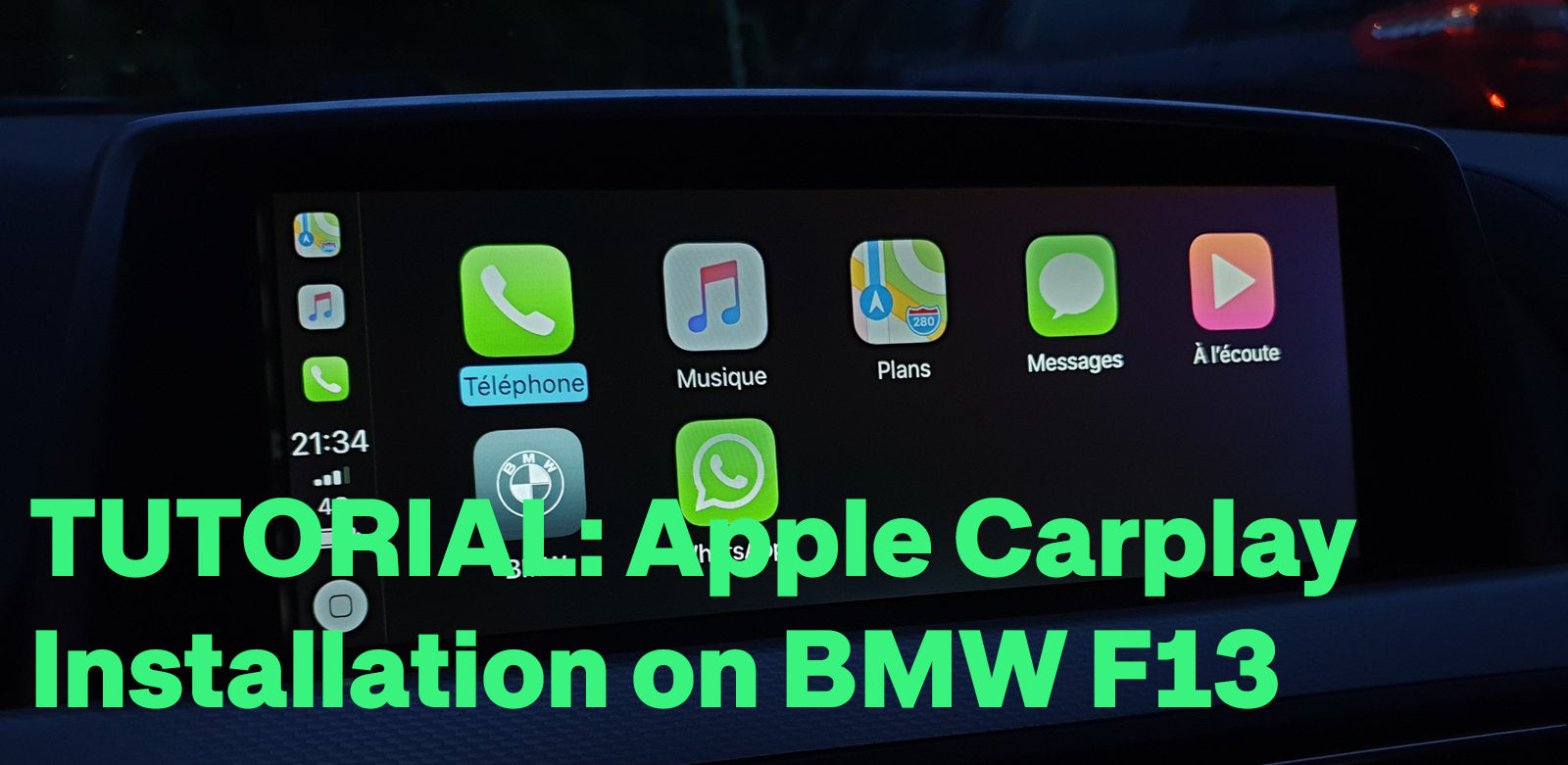

Here, we have chosen Apple Carplay on the BMW 6 series coupe F13.


Our module: Apple Carplay for BMW HERE
